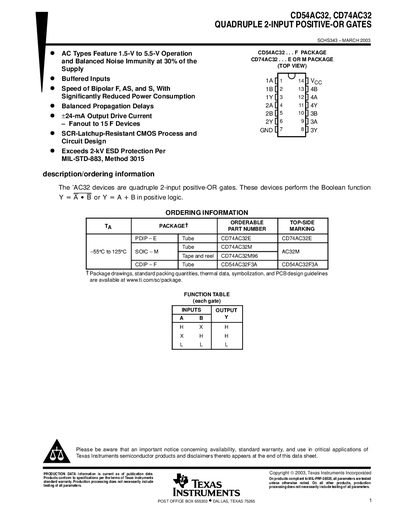

CD54AC32, CD74AC32 are quadruple 2-input positive-OR gates produced by Texas Instruments. The working voltage is 1.5-5.5V, and the anti-interference ability is strong. The output drive current is ±24mA.
The CD54AC32 and CD74AC32 are quadruple 2‑input positive‑OR logic gates that implement the Boolean function Y = A + B. The document provides detailed electrical specifications, absolute maximum ratings, and recommended operating conditions for both devices.
Package information includes PDIP, SOIC, and tape‑and‑reel options, along with mechanical drawings, thermal impedance data, and RoHS compliance details. Ordering codes, pin counts, and material specifications are listed, and an important notice about warranty and usage restrictions is included.
| Output drive current | +24 mA |
|---|---|
| ESD protection | Exceeds 2‑kV |
| Power dissipation capacitance | 47 pF |
The devices can source up to +24 mA of output drive current.
