The document contains various electronic devices with different models such as CDIP, CFP, LCCC, etc. These devices have different package types and pin counts, and have different eco plans and lead/ball finishes. The devices in the document are mainly used for electronic circuit design and manufacturing.

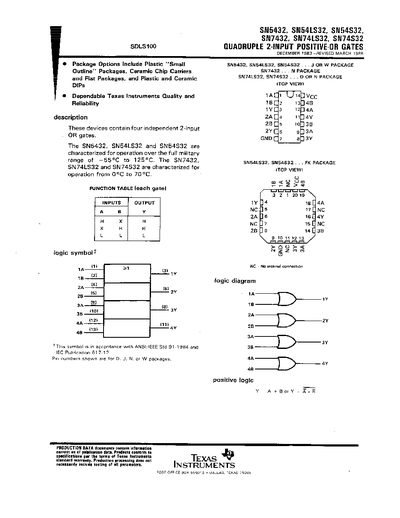

This Texas Instruments handbook provides detailed data for the SN5432, SN54LS32, SN54S32, SN7432, SN74LS32 and SN74S32 quad 2‑input positive‑OR gate devices. It includes recommended supply voltages, input thresholds, output currents, temperature ranges and electrical characteristics.
The document also lists package options, mechanical dimensions, and an addendum with ordering information for various package types such as PDIP, SOIC and SSOP. An important notice at the end outlines warranty, usage restrictions and legal terms.
| High‑level input voltage (VIH) | 2 V |
|---|---|
| Low‑level output current (IOL) | 16 mA |
| Operating temperature range | -55 °C to 125 °C (SN5432 family) / 0 °C to 70 °C (SN74LS32 family) |
The SN5432 is specified for a supply voltage between 4.5 V and 5.5 V.
The SN5432 can operate from –55 °C up to 125 °C.
