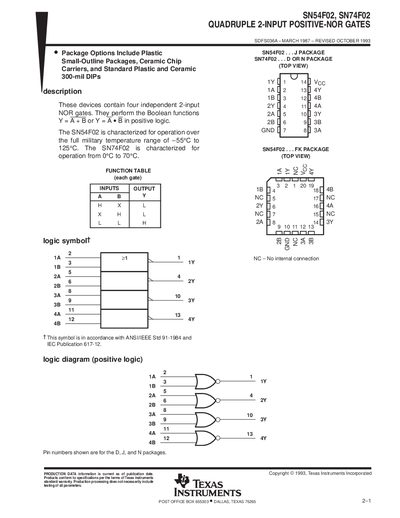

The SN54F02 and SN74F02 are four independent 2-input NOR gates. They perform the Boolean functions Y = A + B or Y = A • B in positive logic. The SN54F02 is characterized for operation over the full military temperature range of –55°C to 125°C. The SN74F02 is characterized for operation from 0°C to 70°C.
The SN54F02 and SN74F02 devices each contain four independent 2‑input positive‑NOR gates. They operate in positive logic, performing the Boolean function Y = A·B + A·B. The SN54F02 is rated for the full military temperature range (‑55 °C to 125 °C) while the SN74F02 is specified for 0 °C to 70 °C.
The document provides absolute‑maximum ratings, recommended operating conditions, electrical characteristics, and detailed package‑option addenda. Mechanical drawings for ceramic and plastic packages, as well as tape‑and‑reel dimensions, are included for designers and manufacturers.
| High‑level input voltage (VIH) | 2.0 V |
|---|---|
| Low‑level input voltage (VIL) | 0.8 V |
| Operating temperature range | SN54F02: ‑55 °C to 125 °C; SN74F02: 0 °C to 70 °C |
| High‑level output current (IOH) | -1 mA |
| Input clamp current | -18 mA |
SN54F02 operates from ‑55 °C to 125 °C, while SN74F02 operates from 0 °C to 70 °C.
VIH is 2.0 V and VIL is 0.8 V.
The high‑level output current rating is –1 mA.
