SN54LVC02A, SN74LVC02A are dual input positive NOR gates, operating voltage range from 1.65V to 3.6V, package types include J, W, D, DB, NS, PW, FK, RGY.

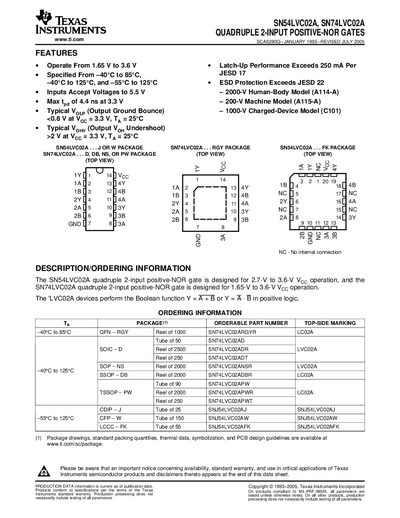

The SN54LVC02A and SN74LVC02A are quad 2‑input positive‑NOR gates offered by Texas Instruments. The document provides detailed electrical characteristics, recommended operating conditions, and package options for both devices.
Key sections include features, ordering information, absolute maximum ratings, electrical and switching characteristics, packaging data, and an important notice about product availability and warranty.
| Supply voltage range | 0.5 V to 6.5 V |
|---|---|
| Input voltage range | 0.5 V to 6.5 V |
| Continuous output current | ± 50 mA |
| Typical propagation delay (t pd) at 3.3 V | 4.4 ns |
The SN54LVC02A can operate with a supply voltage from 0.5 V to 6.5 V.
The devices support a continuous output current of ± 50 mA.
The typical propagation delay is 4.4 ns at a 3.3 V supply.
