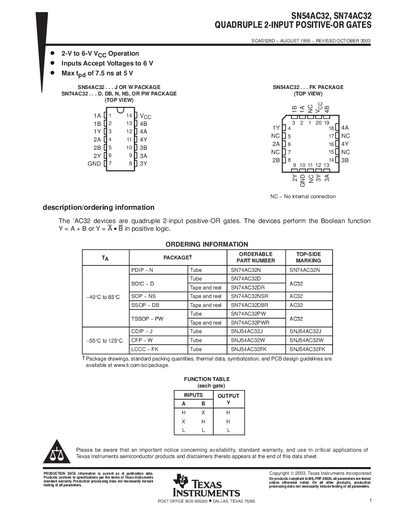

The SN54AC32 and SN74AC32 are quad 2-input positive-OR gates. The devices perform the Boolean function Y = A + B or Y = A • B in positive logic.
The SN74AC32 is a quadruple 2‑input positive‑OR gate that implements the Boolean function Y = A + B in positive logic. It is intended for use in digital logic designs where multiple OR functions are required in a single package.
The datasheet details supply voltage ranges, input and output voltage limits, current capabilities, switching times, and the various package options (PDIP, SOIC, SSOP, TSSOP, etc.). Mechanical drawings, thermal impedance data, and ordering information are also included to aid designers in selecting and integrating the device.
| Supply voltage range (VCC) | -0.5 V to 7 V |
|---|---|
| Input voltage range (VI) | -0.5 V to VCC + 0.5 V |
| Continuous output current (IO) | ±50 mA |
| Package type example | SOIC D, 1450 pins |
The device operates with a supply voltage (VCC) from –0.5 V up to 7 V.
The SN74AC32 can source or sink a continuous output current of ±50 mA.
