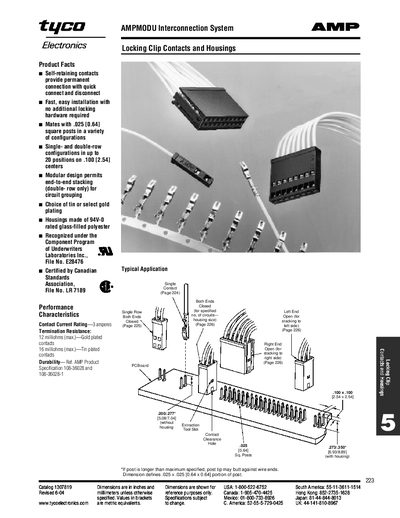

This catalog provides information on the AMPMODU Interconnect System. AMPMODU Interconnect System offers a wide range of features and components to meet a variety of applications needs. Including connectors, terminals, plugs, cables, connector accessories and cable management products.
The AMPMODU Interconnection System offers self‑retaining locking‑clip contacts that provide permanent connections with quick connect and disconnect. It mates with .025 [0.64] square posts in single‑ or double‑row configurations up to 20 positions on .100 [2.54] centers, and the modular design permits end‑to‑end stacking for circuit grouping.
Housings are made of 94V‑0 rated glass‑filled polyester and are available with tin or selective gold plating. The system is UL listed (File No. E28476) and certified by the Canadian Standards Association. Detailed dimensions, plating options, and part numbers are provided for each housing size and configuration.
