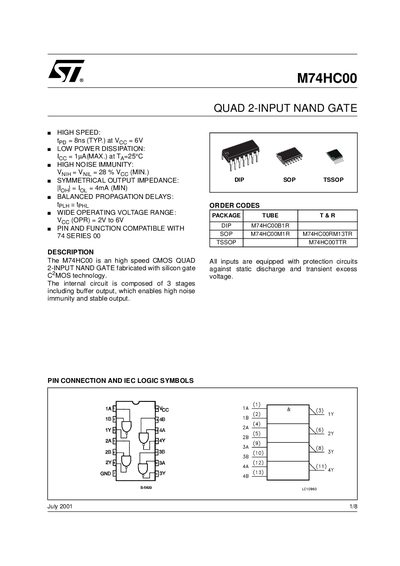

ST M74HC00 handbook

Update: 30 September, 2023

M74HC00 is a high speed CMOS quad 2-input NAND gate fabricated with silicon gate C2MOS technology. The internal circuit is composed of 3 stages including buffer output, which enables high noise immunity and stable output. All inputs are equipped with protection circuits against static discharge and transient excess voltage.

---
