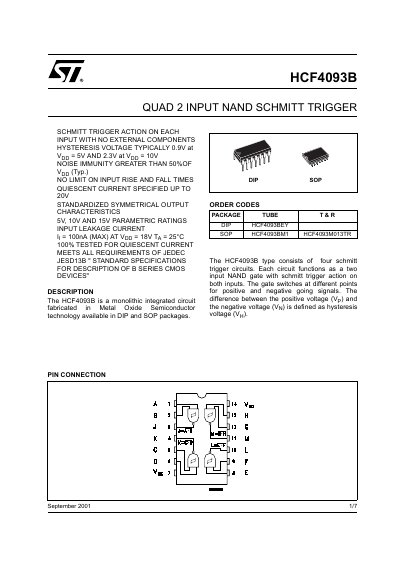

The HCF4093B is a monolithic integrated circuit fabricated in Metal Oxide Semiconductor technology available in DIP and SOP packages.
The HCF4093B is a monolithic integrated circuit fabricated in MOS technology, available in DIP‑14 and SOP‑14 packages. It contains four Schmitt‑trigger circuits, each functioning as a two‑input NAND gate with hysteresis on both inputs.
The document lists absolute maximum ratings, recommended operating conditions, DC and dynamic electrical specifications, mechanical dimensions, and legal notices. Key parameters include supply voltage range, input leakage current, output voltage levels, propagation delay, and power dissipation.
| Supply Voltage Range | -0.5 V to +22 V |
|---|---|
| Input Leakage Current | 100 nA (max) at VDD = 18 V |
| Power Dissipation per Package | 200 mW |
| Operating Temperature Range | -55 °C to +125 °C |
The device can be powered from –0.5 V up to +22 V.
The input leakage current is limited to 100 nA maximum at a VDD of 18 V.
