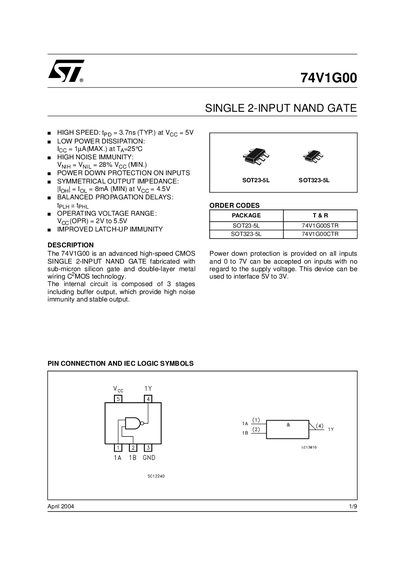

74V1G00 is a high performance CMOS single 2-input Nand gate in the 74 series, fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS technology. The internal circuit is composed of 3 stages including buffer output, which provide high noise immunity and stable output. Power down protection is provided on all inputs and 0 to 7V can be accepted on inputs with no regard to the supply voltage. This device can be used to interface 5V to 3V.
The 74V1G00 is a high‑speed CMOS single 2‑input NAND gate fabricated with sub‑micron silicon gate and double‑layer metal wiring. It offers low power dissipation, high noise immunity, and a symmetrical output impedance, operating from 2 V to 5.5 V.
The document lists pin functions, truth tables, absolute maximum ratings, recommended operating conditions, DC and AC electrical characteristics, capacitance data, test circuit diagrams, and detailed mechanical dimensions for the SOT23‑5L and SOT323‑5L packages, as well as tape‑and‑reel handling data.
| Typical propagation delay (t_pp) | 3.7 ns at Vcc = 5 V |
|---|---|
| Operating voltage range | 2 V – 5.5 V |
| Input diode current | ±20 mA |
The typical propagation delay is 3.7 ns when powered at 5 V.
The device operates from 2 V up to 5.5 V.
