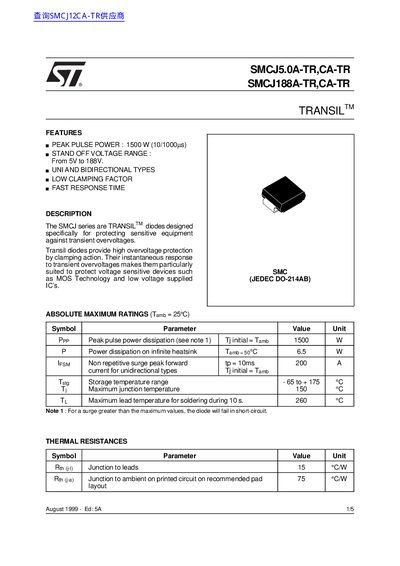

The SMCJ series are TRANSILTM diodes specifically designed for protecting sensitive equipment against transient overvoltages. Transil diodes provide high overvoltage protection by clamping action. Their instantaneous response to transient overvoltages makes them particularly suited to protect voltage sensitive devices such as MOS Technology and low voltage supplied IC’s.
The SMCJ series TRANSIL™ diodes are designed to protect sensitive equipment from transient overvoltages. They offer high peak pulse power, a wide stand‑off voltage range, and fast response times, making them suitable for MOS technology and low‑voltage ICs.
The datasheet lists absolute maximum ratings, thermal resistances, detailed electrical characteristics for each model, and mechanical packaging information including dimensions, footprint, and standard tape‑and‑reel packaging.
| Peak pulse power | 1500 W (10/1000 µs) |
|---|---|
| Stand‑off voltage range | 5 V to 188 V |
| Power dissipation on infinite heatsink | 6.5 W |
| Maximum junction temperature | 150 °C |
| Maximum lead temperature for soldering (10 s) | 260 °C |
| Storage temperature range | -65 °C to +175 °C |
The diodes can handle a peak pulse power of 1500 W for a 10 µs/1000 µs pulse.
The series provides stand‑off voltages from 5 V up to 188 V.
The maximum junction temperature is specified as 150 °C.
Standard packaging is tape and reel.
