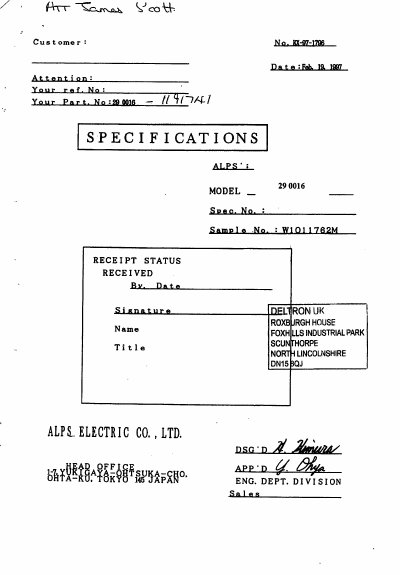

This document is a specification sheet from ALPS Electric Co., Ltd., which mainly describes the specifications and characteristics of one of their products.
This handbook provides the electrical and mechanical specifications for the ALPS 290016 resistor. It includes resistance values, power rating, voltage limits, insulation resistance, and endurance requirements.
Mechanical characteristics such as rotational angle, torque, shaft strength, and solder‑heat resistance are also detailed, along with mounting guidelines and dimensional drawings.
| Total resistance | 10 kΩ ±20 % |
|---|---|
| Rated power | 0.05 W |
| Maximum AC voltage | 50 V AC (1 min) |
| Insulation resistance | >100 MΩ at 250 V DC |
| Overall rotational angle | 280° ±5° |
| Operation torque | 10‑80 sf‑cm |
The resistor is rated for 0.05 W of power.
It can withstand up to 50 V AC for at least one minute.
The insulation resistance must be greater than 100 MΩ measured at 250 V DC.
The shaft rotates 280° ±5°.
