SPPH1 series is a switch launched by OMRON. It has a 1.5mm trigger stroke, 10000 times of service life, and can meet the needs of automotive and home appliances and other applications.

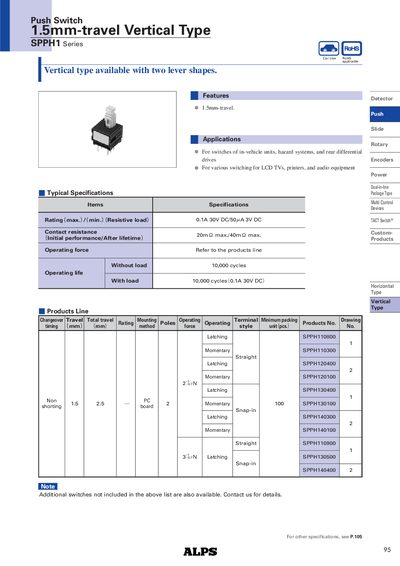

The SPPH1 Series vertical push switches from ALPS feature a 1.5 mm travel and are intended for in‑vehicle units, hazard systems, rear differential drives, LCD TVs, printers, and audio equipment. The series offers both latching and momentary variants with different lever shapes and mounting styles.
The document lists electrical ratings (0.1 A 30 V DC), contact resistance (20 mΩ max.), operating life (10 000 cycles without load, 10 000 cycles with load), temperature range (‑10 °C to +60 °C), and mechanical data such as mounting hole spacing (20.9 mm) and pulling force (≈50 N). Dimensions, terminal styles, and package types are also provided.
| Travel | 1.5 mm |
|---|---|
| Maximum Rating (Resistive load) | 0.1 A 30 V DC |
| Contact Resistance (initial) | 20 mΩ max. |
| Operating Life (without load) | 10,000 cycles |
| Operating Life (with load) | 10,000 cycles at 0.1 A 30 V DC |
| Operating Temperature Range | -10 °C to +60 °C |
| Electrical Insulation Resistance | 500 V DC |
| Voltage Proof | 500 V AC for 1 min |
| Pulling Force | ≈50 N |
| Mounting Hole Spacing | 20.9 mm |
The switch has a 1.5 mm travel distance.
It is rated for 0.1 A at 30 V DC.
The switch is rated for 10,000 cycles without load.
It operates from –10 °C to +60 °C.
