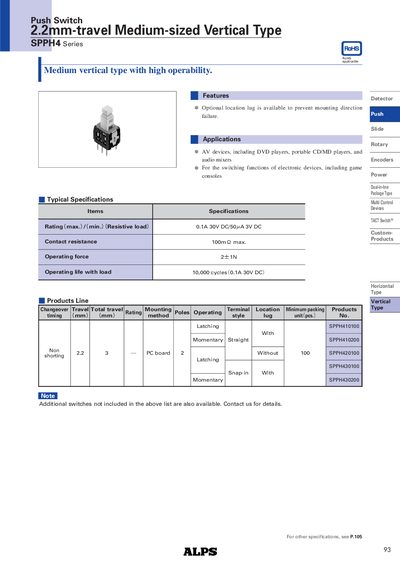

This PDF file is about the SPPH4 series of straight-insert switches. The series of switches have a 2.2 mm stroke and can meet the switching functions of AV devices, game consoles and other electronic devices.
The ALPS SPPH4 series provides a medium‑sized vertical push switch with a 2.2 mm travel distance, designed for high operability in AV devices, game consoles and other electronic equipment. It offers optional location lugs to secure mounting direction and is RoHS compliant.
Key features include a 21 N operating force, 100 mΩ maximum contact resistance, and a rated load of 0.1 A at 30 V DC. The switch is rated for 10,000 operating cycles under load and operates reliably from –10 °C to +60 °C. Detailed dimensions, mounting options, and circuit diagrams are provided for PCB integration.
| Travel | 2.2 mm |
|---|---|
| Operating force | 21 N |
| Rated load (max) | 0.1 A / 30 V DC |
| Operating life with load | 10,000 cycles |
| Operating temperature range | -10 °C to +60 °C |
The SPPH4 series has a travel distance of 2.2 mm.
The maximum operating force is 21 N.
It is rated for 0.1 A at 30 V DC under resistive load.
