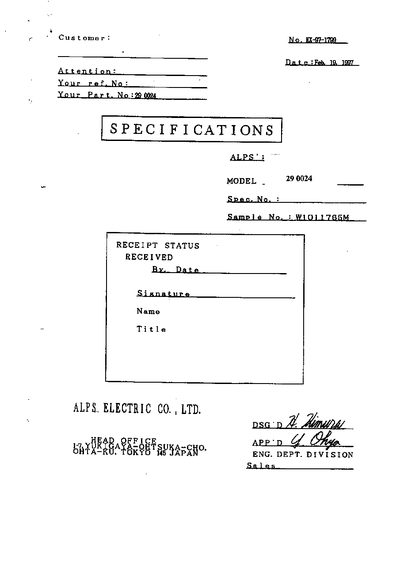

This is a specification of a potentiometer
This datasheet describes the electrical characteristics of the ALPS 29 0024 component, including resistance, power rating, insulation resistance, sliding noise, and voltage withstand capabilities. It also outlines the mechanical dimensions such as overall rotational angle, shaft stress strength, and tolerances for shaft play and eccentricity.
Additional information covers operating and storage temperature ranges, endurance life, and compliance with JIS C 6443 standards. The document includes manufacturing and inspection details, as well as reference numbers and revision dates.
| Total resistance | 10Qka 220% |
|---|---|
| Rated power | 0.05 W |
| Sliding noise | <100 mV |
| Insulation resistance | >100 MΩ |
| Operating temperature | -10°C to 80°C |
| Storage temperature | -30°C to 70°C |
| Overall rotational angle | 280° ±45° |
| Shaft end stress strength | 3 Kgf·cm (min) |
The rated power is 0.05 W.
It must have an insulation resistance greater than 100 MΩ measured at 250 V.
The component operates between –10 °C and 80 °C.
Sliding noise must be less than 100 mV.
