This document describes the features and characteristics of some multi-control devices, including variable resistor type switches, 283 detectors, push slide rotary encoders, etc. These products have a compact size, standard design, and superior operational feeling, making them ideal for applications in audio systems, TV remote controllers, game controllers, and electronic toy controllers.

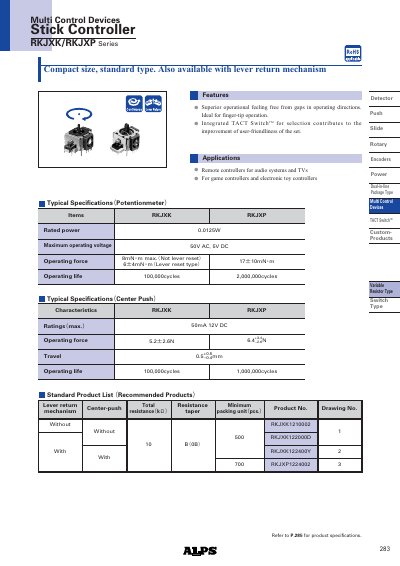

The RKJXK/RKJXP Series stick controller is a compact variable‑resistor switch designed for fingertip operation. It offers a lever‑return mechanism, high‑resolution directional control, and a durable TACT switch for reliable performance in remote‑control, gaming, and electronic‑toy applications.
The document details electrical and mechanical specifications, mounting guidelines, and wiring areas, along with operating life expectations and environmental test results, helping users integrate the controller into their devices safely and effectively.
| Rated power | 0.0125W |
|---|---|
| Maximum operating voltage | 50V AC / 15V DC |
| Operating force | 8 mN max. |
| Operating life (RKJXK) | 100,000 cycles |
| Travel | 0.5+0.5 –0.4 mm |
| Directional operating force | 5.2 N / 2.6 N |
The controller is rated at 0.0125 W.
It can operate up to 50 V AC or 15 V DC.
The RKJXK model is rated for 100,000 cycles.
It is used in remote controllers for audio systems and TVs, as well as game controllers and electronic toy controllers.
