This document is the detailed specification of RK0971110 potentiometer, including product model, brand, total resistance, rated power, rated voltage, resistance taper, rotation angle, etc.

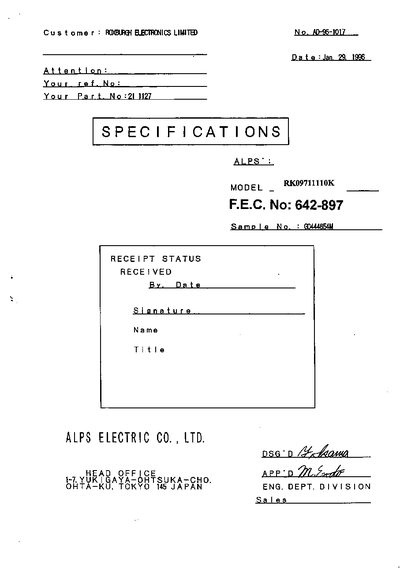

This data sheet details the electrical characteristics of the ALPS RK09711110K rotary switch, including resistance, power rating, insulation resistance, and withstand voltage. It also lists mechanical properties such as shaft material, bushing material, and endurance specifications.
The document includes notes on soldering requirements, material tolerances, and mounting details, making it a comprehensive reference for designers and technicians working with this component.
| Total resistance | 10 kΩ ±20% |
|---|---|
| Rated power | 0.05 W |
| Insulation resistance | > 100 MΩ at 250 V |
| Withstand voltage | 300 V AC for 1 minute |
| Rotational life | > 15,000 cycles |
| Shaft material | Aluminum |
| Bushing material | Zinc alloy die casting |
The total resistance is 10 kΩ with a tolerance of ±20 %.
The rated power is 0.05 W.
It has an insulation resistance of more than 100 MΩ at 250 V.
The rotary switch is rated for more than 15,000 cycles.
