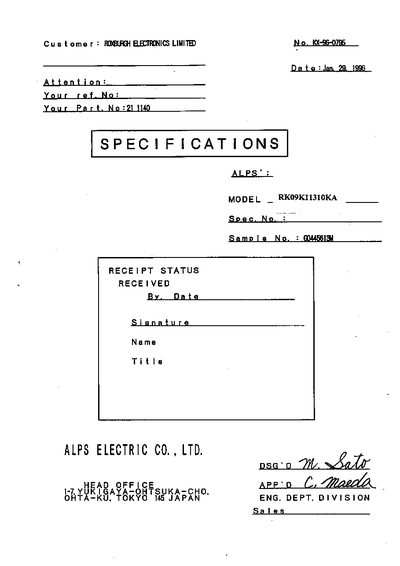

This is a RK09K11310KA resistor specification sheet
The RK09K11310KA is a potentiometer covered by this specifications document. It lists the model number, marking options, material (polycarbonate) and handling precautions for chemicals such as ammonia or alkaline solutions.
The sheet provides detailed electrical data (resistance, power, voltage limits, insulation resistance, withstand voltage) and mechanical characteristics (torque, shaft play, eccentricity, robustness to thrust) as well as endurance and temperature ranges for operation and storage.
| Total resistance | 10 kΩ |
|---|---|
| Rated power | 70.05 W |
| Maximum working voltage | 50 VAC |
| Insulation resistance | > 100 MΩ |
| Withstand voltage | ≥ 250 V AC for 1 min |
| Rotational life | ≥ 5 000 cycles |
| Operating temperature range | -10 °C to +60 °C |
| Storage temperature range | -30 °C to +70 °C |
| Residual resistance between terminals 1‑2 and 2‑3 | ≤ 3000 Ω |
| Sliding noise | < 100 mV |
The potentiometer has a total resistance of 10 kΩ.
Its rated power is 70.05 W.
It can operate from –10 °C to +60 °C.
The maximum working voltage is 50 VAC.
