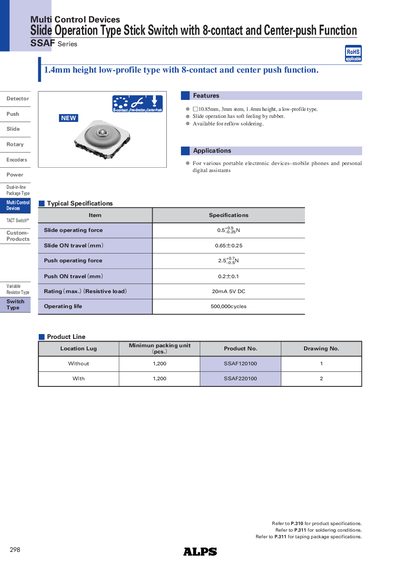

SSAF series is a 1.4mm high low-profile type with 8-contact and center push function. It has a soft feeling by rubber and is available for reflow soldering.
The ALPS SSAF Series is a low‑profile slide switch with eight contacts and a center‑push function, designed for portable electronic devices such as mobile phones and PDAs.
The datasheet lists key dimensions (10.85 mm length, 3 mm stem, 1.4 mm height), electrical ratings (20 mA at 5 V DC), operating life of up to 500 k cycles, and provides recommended soldering and taping specifications for manufacturing.
| Slide operating force | 0.5 N |
|---|---|
| Push operating force | 2.5 N |
| Slide ON travel | 0.65 mm |
| Push ON travel | 0.2 mm |
| Resistive load rating | 20 mA at 5 V DC |
| Operating life | 500,000 cycles |
The switch is rated for 500,000 cycles without load.
A double heating method with an infrared heater is recommended.
It measures 10.85 mm in length, has a 3 mm stem, and a height of 1.4 mm.
The switch can handle up to 20 mA at 5 V DC.
