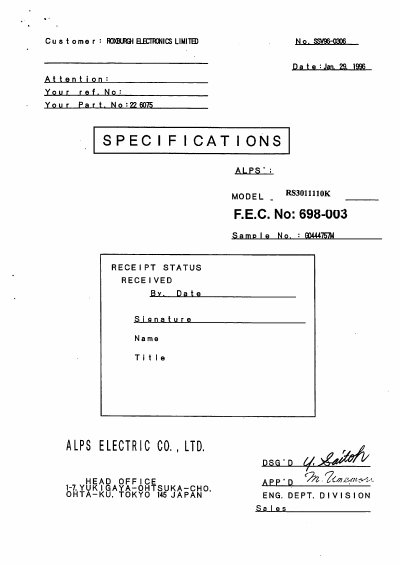

This document is the specification of RS30111U potentiometer.
This document provides the technical specifications for the ALPS RS30111U slide potentiometer. It covers electrical characteristics such as overall resistance tolerance, rated power, voltage limits, dielectric strength, insulation resistance, and sliding life. Mechanical data include travel, operating and starting forces, sliding speed, stop strength, and lever play. Soldering guidelines and mounting details are also included.
The sheet is intended for designers and manufacturers who need precise performance data for integration of the potentiometer into electronic assemblies. It outlines recommended soldering temperatures, times, and flux specifications, as well as mounting hole dimensions and lever installation requirements.
| Overall resistance tolerance | ±20 % |
|---|---|
| Rated power | 0.1 Watts |
| Maximum operating voltage | AC 150 V, DC 10 V |
| Sliding life test | 15 000 cycles |
| Operating force | 30–250 gf |
| Starting force | Operating force + 100 gf max |
| Sliding speed | 20 mm/s |
| Stop strength | 5 kgf at 5 mm from mounting surface |
| Resistance to soldering heat | 3 s max at 300 °C |
The rated power is 0.1 Watts.
The maximum operating voltage is 150 V AC and 10 V DC.
It is rated for 15 000 sliding cycles.
Soldering should not exceed 300 °C for more than 3 seconds, or 260 °C for up to 5 seconds.
