This is the specification of RK09K1110 resistor, the specification contains information such as total resistance, rated power, rated voltage, maximum working voltage, residual resistance.

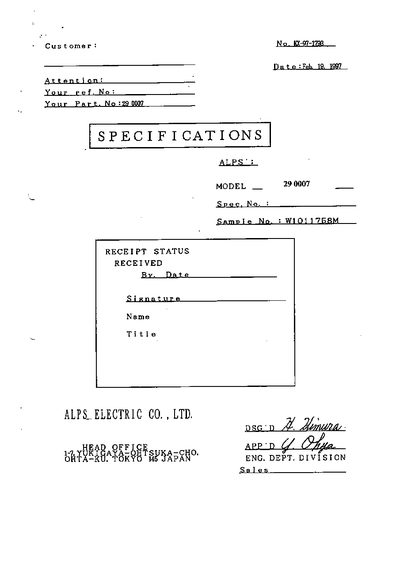

This handbook from ALPS Electric details the specifications of the 29 0007 component. It includes electrical parameters such as resistance, power rating, insulation resistance and voltage limits, as well as mechanical characteristics like torque, shaft tolerances and robustness.
Mechanical and endurance data are also covered, describing rotational life, operating torque, and temperature storage ranges. The document concludes with certification notes and reference numbers.
| Total resistance | 10 kΩ |
|---|---|
| Rated power | 70.05 W |
| Insulation resistance | >100 MΩ (250 V DC) |
| Withstand voltage | ≥260 V AC |
| Rotational life | 5,000 cycles |
The total resistance is 10 kΩ.
The rated power is 70.05 W.
It must have an insulation resistance greater than 100 MΩ measured at 250 V DC.
The rotational life is rated for 5,000 cycles.
