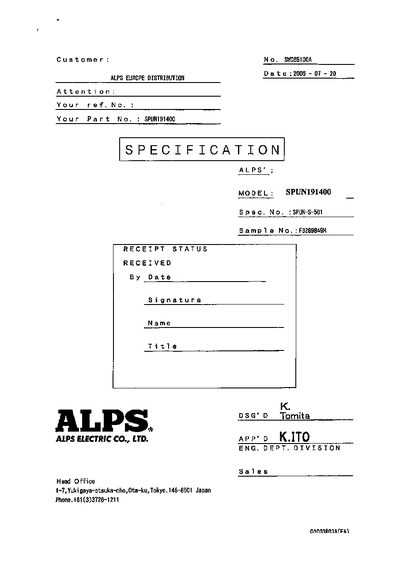

This document is a specification receipt report from ALPS EUROPE DISTRIBUTION, which describes the features and characteristics of their product SPUN191400.
The document provides detailed specifications for the Alps SPUNI91400 switch, including mechanical design, electrical performance, and environmental durability. It lists the part number, manufacturer information, and the intended application for electronic equipment.
Key sections cover operating temperature range, contact resistance, insulation and voltage‑proof testing, mechanical life cycles, weather‑proofing, and solderability requirements. Test conditions and acceptance criteria are defined for each parameter.
| Operating temperature range | -16 °C to 60 °C |
|---|---|
| Contact resistance | ≤ 20 mΩ (max) |
| Insulation test voltage | 500 VDC |
| Capacitance (max) | pF MAX (unspecified value) |
| Operating life (cycles) | 30,000 cycles at 15‑20 cycles/min |
| Cold proof test | -20 °C for 6 hours |
| Hot heat test | 85 °C for 8 hours |
The switch operates from –16 °C up to 60 °C.
Contact resistance must not exceed 20 mΩ.
The insulation test voltage is 500 VDC.
It is rated for 30,000 cycles at 15‑20 cycles per minute.
