This document describes a multi-functional device, including a metal shaft, insulated type, position sensor, slide volume, semi-fixed volume, etc. The product is suitable for various control applications with general consumer electronics products, automotive installation equipment and devices, industrial machines, etc.

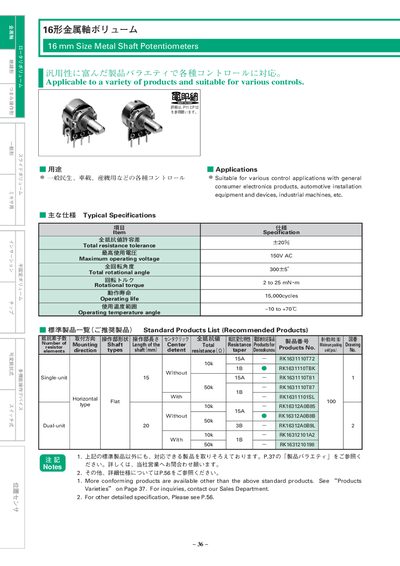

This datasheet describes ALPS 16 mm metal shaft potentiometers, covering both single‑unit and dual‑unit versions. It lists typical specifications such as resistance tolerance, voltage rating, rotational angle, torque, operating life and temperature range.
The document also includes mechanical data like shaft dimensions, mounting hole patterns, and terminal styles, along with a standard product list showing model numbers (e.g., RK16311, RK1631110TBK) and their corresponding resistance values.
| Total rotational angle | 300° |
|---|---|
| Rotational torque | 2 to 25 mN·m |
| Operating life | 15,000 cycles |
The shaft rotates through 300 degrees.
The torque is between 2 and 25 mN·m.
