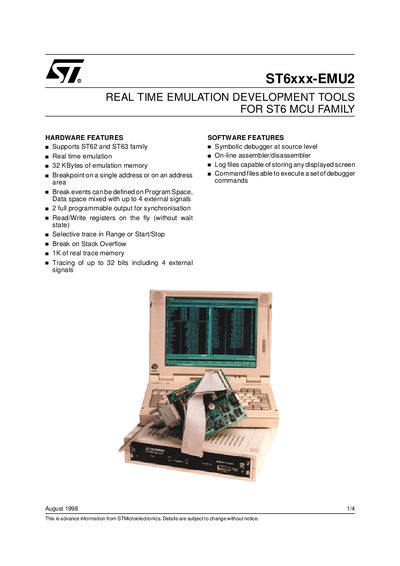

ST6xxx-EMU2 is an advanced hardware development system designed and configured by STMicroelectronics to provide comprehensive support for the ST6 family of MCU's. It supports ST62 and ST63 series, has 32K bytes of emulation memory, single address or address range breakpoints, program space, data space or external signal breakpoints, full programmable synchronization outputs, read/write registers on the fly (without wait state), selective trace in range or start/stop, stack overflow breakpoints, 1K of real trace memory, 32-bit tracing and 4 external signal tracing.
The ST6 Real Time Development System is an advanced hardware development system designed to provide comprehensive support for the ST6 family of microcontrollers. It consists of a basic mainframe common to all ST6 devices and a dedicated board for the ST62 or ST63 sub‑family, with a Windows‑based symbolic debugger that runs on Windows 3.1x, Windows 95, and Windows NT.
Key features include on‑line assembler/disassembler, breakpoint control, real‑time trace memory (1 KB), 32 KB of emulation memory, two programmable outputs, and a logical analyser that records 32 bits of bus, flag, register and external‑signal data. The system also offers a “Read on the Fly” capability for reading and modifying registers without disturbing program execution, and provides ordering information for various emulator packages and probes.
| Emulation memory | 32 KBytes |
|---|---|
| Real trace memory | 1 KByte |
| Programmable outputs | 2 |
| Supported MCU families | ST62, ST63 |
| Logical analyser width | 32 bits |
The “Read on the Fly” feature allows registers to be read and modified without disturbing program execution.
The emulator power supply can be adjusted to 220 V or 110 V.
