STPS5H100B/-1 is a high voltage power Schottky rectifier produced by STMicroelectronics. It has a maximum reverse peak voltage of 100V, a maximum forward average current of 5A, a maximum forward peak current of 75A, a maximum reverse peak current of 1A, and a maximum operating temperature of 175℃.
The STPS5H100B is a high‑voltage Schottky barrier rectifier intended for high‑frequency switched‑mode power supplies, such as adapters and on‑board DC‑DC converters. It offers negligible switching losses, high junction temperature capability, low leakage current, and an avalanche‑rated design.

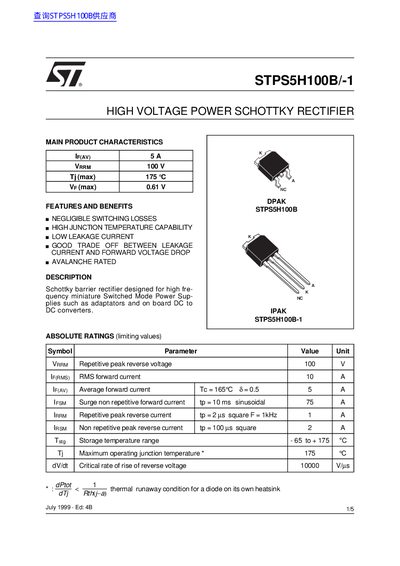

The document lists absolute ratings, thermal resistances, static electrical characteristics, mechanical dimensions for DPAK and IPAK packages, and ordering information, enabling designers to evaluate performance and integrate the component into their circuits.
| Average forward current (IF(Av)) | 5 A |
|---|---|
| Repetitive peak reverse voltage (VrRM) | 100 V |
| Maximum junction temperature (Tj) | 175 °C |
| Maximum forward voltage drop (Ve) | 0.61 V |
| RMS forward current (Irms) | 10 A |
| Junction‑to‑case thermal resistance (Rth(j‑c)) | 2.5 °C/W |
| DPAK package width (B2) | 2.20 mm |
The device can withstand a repetitive peak reverse voltage of 100 V.
The RMS forward current rating is 10 A.
The junction‑to‑case thermal resistance is 2.5 °C/W.
