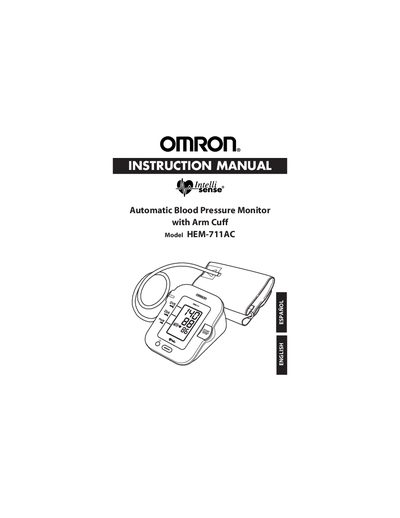

This document provides instructions for using the HEM-711AC model automatic blood pressure monitor and safety information.
The Omron HEM-711AC IntelliSense® Automatic Blood Pressure Monitor is a home‑use device that measures blood pressure and pulse using the oscillometric method. The manual includes safety information, preparation steps, and detailed operating instructions such as cuff placement, measurement procedure, and memory functions.
Additional sections cover battery installation, AC adapter use, date and time setting, troubleshooting symbols, and full technical specifications including measurement range, accuracy, power source, and dimensions. The device complies with FCC regulations and includes warranty and regulatory information.
| Measurement Range (Pressure) | 0 to 299 mmHg |
|---|---|
| Measurement Range (Pulse) | 40 to 180 /min |
| Pressure Accuracy | +3 mmHg or 2% of reading |
| Pulse Accuracy | +5% of reading |
| Power Source | 120V 60Hz AC adapter or 4 AA batteries |
| Battery Life | Approx. 1500 uses (2 times a day with new alkaline batteries) |
| Operating Temperature | 50°F to 104°F (10°C to 40°C) |
| Memory Capacity | Up to 60 readings |
| Main Unit Weight | Approximately 12.5 oz (355 g) without batteries |
The monitor uses four 1.5 V AA manganese or alkaline batteries.
The monitor can store up to 60 blood pressure and pulse readings.
It uses the oscillometric method to detect blood pressure.
