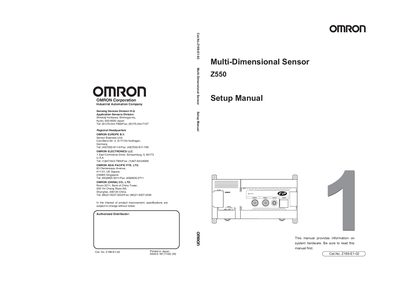

This manual provides information on system hardware and explains the installation and setup methods of the Multi-Dimensional Sensor Z550.
This manual introduces the Omron Z550 Multi‑Dimensional Sensor, covering safety warnings, warranty information, and general precautions for handling the product. It explains the meaning of signal words and alert symbols, and outlines the responsibilities of the user regarding proper installation and use.
The document details laser‑related safety measures, including classification, wavelength, pulse duration, cycle time, and peak power. It also describes labeling requirements for different regions, wiring and connection procedures, and provides performance data and dimensional information for the sensor.
| Laser wavelength | 658 nm |
|---|---|
| Maximum pulse duration | 17.5 ms |
| Cycle time | 0.5 to 25 ms |
| Peak power | 15 mW max |
| Laser classification | Class 3B |
The sensor head is classified as a Class 3B laser product according to EN60825‑1 (IEC60825‑1) and as a Class IIIB product according to FDA regulations.
Do not expose your eyes to the laser radiation, keep the protective housing in place during operation and maintenance, and turn the sensor off before replacing any label.
