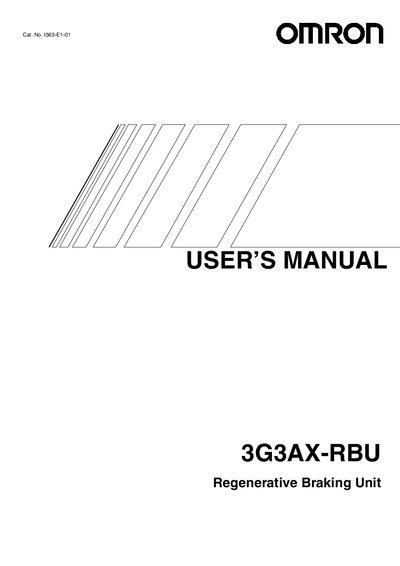

This is an OMRON user's manual for the 3G3AX-RBU model, which mainly introduces the installation, wiring, troubleshooting and inspection methods of the product.
This manual describes the installation, wiring, inspection, and troubleshooting procedures for the Omron 3G3AX‑RBU Regenerative Braking Unit. It is intended for qualified electrical engineers or personnel responsible for designing, installing, and managing control equipment.
The document also covers safety precautions, warranty terms, application limits, and legal conditions of sale. Users are instructed to follow all safety warnings, ground the unit, and ensure only qualified personnel perform wiring work.
The manual is intended for qualified electrical engineers or personnel with knowledge of electrical systems who are responsible for introducing, designing, installing, or managing the control equipment.
Power must be turned off, the unit must be properly grounded, and only qualified personnel should perform wiring work.
Omron’s exclusive warranty covers defects in materials and workmanship for a period of one year from the date of sale.
No. The manual states the product must never be used in applications involving serious risk to life or property without proper system design and rating.
