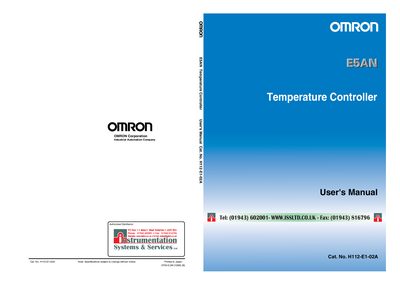

This document is the user manual for the E5AN Temperature Controller produced by OMRON Corporation Industrial Automation Company. The manual provides information on the specifications and features of the temperature controller, including its functions, operation methods, and technical parameters.
This manual describes the Omron E5AN temperature controller, its features, safety precautions, and how to set up and operate the unit. It includes guidance on wiring, power supply, environmental limits, and calibration procedures.
The document is organized into chapters covering introduction, preparations, basic and applied operation, parameters, calibration, and appendices such as specifications and revision history. Safety warnings, wiring diagrams, and configuration tables are provided throughout.
| Operating temperature range | -10 °C to 55 °C |
|---|---|
| Storage temperature range | -25 °C to 65 °C |
| Operating humidity range | 25 % to 85 % (no icing/condensation) |
| Enclosure rating | NEMA 4X (IP66 equivalent) |
The controller can operate from –10 °C up to 55 °C.
Do not wire unused terminals and ensure correct polarity of all connections.
Do not block the ventilation holes on the casing and allow space for heat to escape.
