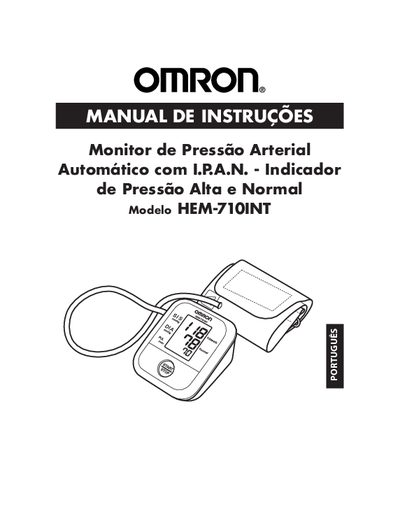

This is a user manual for an automatic blood pressure monitor. It includes instructions on how to use the device, precautions, and maintenance.
The Omron HEM-710INT is an automatic blood pressure monitor designed for adult use. This manual provides safety guidelines, operating instructions, and maintenance tips to ensure accurate measurements and safe handling.
The document includes detailed specifications such as measurement ranges, battery life, operating temperature, and cuff dimensions, as well as troubleshooting advice and warranty information. This manual is written in Portuguese.
| Model | HEM-710INT |
|---|---|
| Display | Digital LCD |
| Blood pressure range | 0 to 299 mmHg |
| Pulse range | 40‑180 /min |
| Maximum pressure error | +3 mmHg |
| Maximum pulse error | +5 % of reading |
| Inflation method | Automatic, electric pump |
| Deflation valve | Automatic pressure release valve |
| Rapid air release valve | Automatic exhaust valve |
| Pressure sensor | Capacitive pressure sensor |
| Measurement method | Oscillometric |
| Pulse detection sensor | Capacitive pressure sensor |
| Power source | 4 AAA alkaline batteries, 1.5 V each |
| Battery life | ≈300 measurements per day |
| Operating temperature / humidity | 50 °F‑104 °F (10 °C‑40 °C) / 30‑85 % RH |
| Storage temperature / humidity / pressure | -4 °F‑140 °F (-20 °C‑60 °C) / 10‑95 % RH / 700‑1060 hPa |
| Weight | ≈315 g (without batteries) |
| Dimensions | ≈103 mm × 125 mm × 62 mm (C × L × A) |
| Cuff size (length × width) | ≈146 mm × 446 mm |
| Cuff circumference range | 220 mm‑320 mm |
It uses four AAA alkaline batteries, each 1.5 V.
Approximately 300 measurements per day with new batteries.
The device measures blood pressure from 0 to 299 mmHg.
It operates between 50 °F and 104 °F (10 °C‑40 °C) with 30‑85 % relative humidity.
