This manual describes the functions, performance, and application methods of the ZEN Programmable Relay, highlighting its compact and highly functional controller that can be used to easily automate small-scale applications.

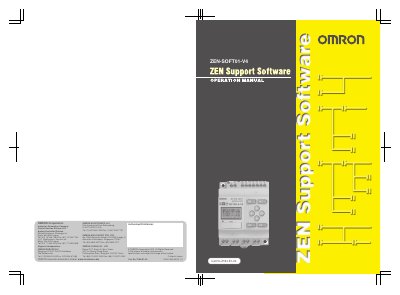

This manual describes the installation, setup, and operation of the ZEN‑SOFT01‑V4 support software used with Omron ZEN programmable relays. It includes safety warnings, warranty information, and licensing terms, and explains how to create, edit, and simulate ladder programs.
The guide also covers connecting the ZEN unit to a PC, online communication settings, version compatibility, and troubleshooting steps. Detailed procedures for transferring programs, setting passwords, and clearing memory are provided, along with revision history and hardware specifications.
| Dimensions and weights | nominal (not for manufacturing) |
|---|
It installs, starts, and allows creation, editing, printing, and simulation of ladder programs for ZEN programmable relays.
Turn off the ZEN, connect the computer cable, turn the ZEN on, then use the Go Online command to check the status bar changes from Offline to Online.
No, the user shall not sub‑license, assign, nor lease the software to any third party without prior written consent.
Operate the product according to the performance specifications described in the manual and consult an Omron representative for high‑risk applications.
