C&K 7000 Series Miniature Toggle Switches are multi-pole and multi-position, with a wide variety of actuator and termination options, epoxy terminal-seal compatible with bottom wash cleaning, and RoHS complaint models available.
The 7000 Series miniature toggle switches from C&K are designed for telecommunications, instrumentation, and medical equipment. They offer multi‑pole, multi‑position configurations, a wide variety of actuator and termination options, and RoHS‑compliant models.

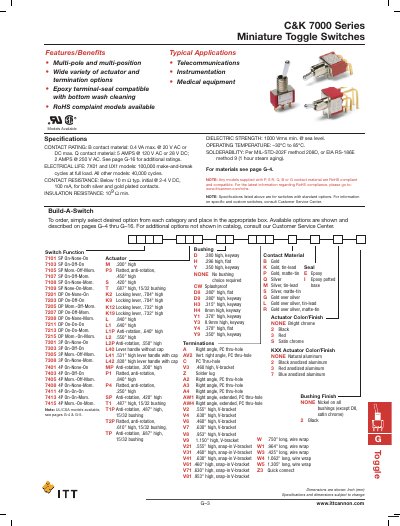

The document lists detailed electrical ratings, mechanical dimensions, actuator styles, bushing options, and part numbers. It also includes ordering guidance, material descriptions, and optional accessories such as lever handles and caps.
| Contact rating (B) | 0.4 VA @ 20 V AC/DC |
|---|---|
| Contact rating (Q) | 5 A @ 120 V AC or 28 V DC; 2 A @ 250 V AC |
| Electrical life (7X01/UX1) | 100,000 make‑and‑break cycles at full load |
| Contact resistance | Below 10 mΩ typ. |
| Insulation resistance | ≥ 10⁹ Ω |
| Dielectric strength | ≥ 1000 Vrms |
| Operating temperature range | ‑30 °C to 85 °C |
| IP protection rating | IP67 |
The B contact material is rated at 0.4 VA maximum at 20 V AC or DC.
They are rated for 100,000 make‑and‑break cycles at full load.
Yes, any models supplied with P, S, R, Q, B or G contact material are RoHS compliant.
The switches have an IP67 rating, protecting against dust and temporary immersion.
