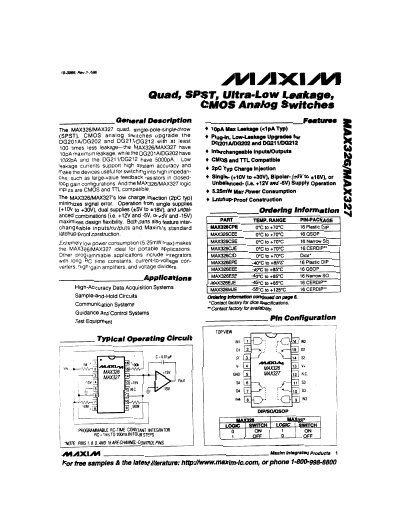

The MAX326 and MAX327 are quad, single‑pole‑single‑throw CMOS analog switches that provide ultra‑low leakage (10 pA max, <1 pA typical) and low charge injection (2 pC typ). They operate from a single supply of +10 V to +30 V, dual supplies of +5 V to +18 V, or unbalanced combinations, and consume up to 5.25 mW of power. Features include interchangeable inputs/outputs, latch‑up‑proof construction, and TTL/CMOS compatible logic levels.
These devices are pin‑compatible upgrades for DG201A/DG202 and DG211/DG212 and are suited for high‑accuracy data‑acquisition, sample‑and‑hold circuits, communication systems, and test equipment. Ordering information, package options, and detailed electrical characteristics are provided for design integration.
| Maximum Leakage Current | 10 pA |
|---|---|
| Typical Leakage Current | <1 pA |
| Maximum Power Consumption | 5.25 mW |
| Single‑Supply Voltage Range | +10 V to +30 V |
| Dual‑Supply Voltage Range | +5 V to +18 V |
| Typical Charge Injection | 2 pC |
The devices have a maximum leakage current of 10 pA.
Typical charge injection is 2 pC.
