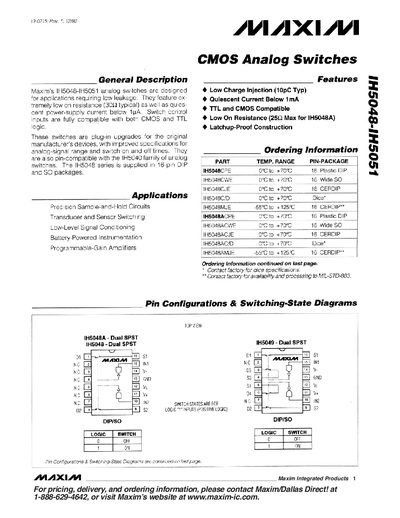

The Maxim IH5048‑IH5051 series are CMOS analog switches designed for low leakage and low on‑resistance applications. They are compatible with both TTL and CMOS logic levels and are offered in 16‑pin DIP and SO packages.
The document provides ordering information, pin configurations, electrical characteristics, absolute maximum ratings, and typical operating parameters such as on‑resistance, charge injection, and switching times.
| On‑Resistance (typical) | 302 Ω |
|---|---|
| Maximum On‑Resistance (IH5048A) | 250 Ω |
| Quiescent Current | < 1 mA |
| Charge Injection | 10 pC typ |
| Operating Temperature Range | –65 °C to +150 °C (storage), up to +70 °C (operation) |
The typical on‑resistance is about 302 Ω.
The devices have a low charge injection of approximately 10 pC typical.
They are rated for storage from –65 °C to +150 °C and operation up to +70 °C (some variants to +125 °C).
