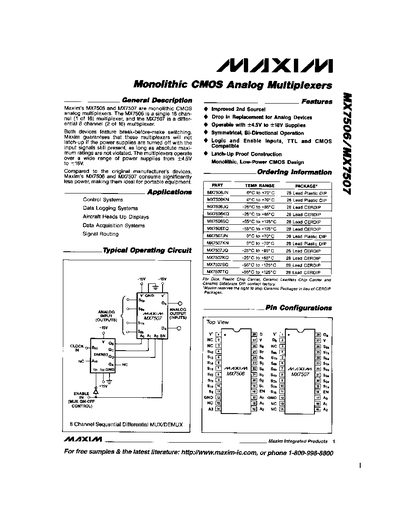

The MX7506 is a single 16‑channel (1‑of‑16) multiplexer, while the MX7507 is a differential 8‑channel (2‑of‑16) device. Both feature break‑before‑make switching and are designed for low‑power portable equipment, supporting supply voltages from +4.5 V to +18 V. Typical applications include control systems, data‑logging, aircraft HUDs, data acquisition, and signal routing.
Key features include drop‑in replacement for Analog Devices parts, TTL/CMOS‑compatible logic and enable inputs, and a wide temperature range across multiple package options (plastic DIP and CERDIP). The datasheet provides detailed pin configurations, absolute maximum ratings, electrical characteristics, dynamic switching parameters, and truth tables for both devices.
| Break‑Before‑Make Interval | 100 ns |
|---|---|
| Switching Time | ≈700 ns |
The break‑before‑make interval is specified as 100 ns.
