The MAX334 is a quad single‑pole‑single‑throw (SPST) analog switch offering break‑before‑make operation, fast switching speeds, and low on‑resistance. It supports both split and single‑supply operation and is compatible with CMOS and TTL logic levels.

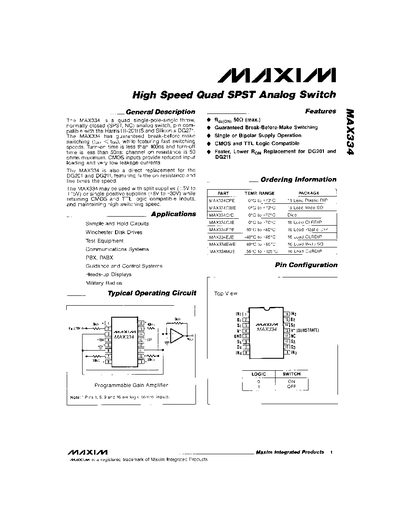

The datasheet provides absolute maximum ratings, electrical characteristics, switching performance, and ordering information for the various package options of the MAX334 series.
| Turn‑on time | < 100 ns |
|---|---|
| Turn‑off time | < 50 ns |
| On‑resistance | ≤ 50 Ω |
The turn‑on time is less than 100 ns.
