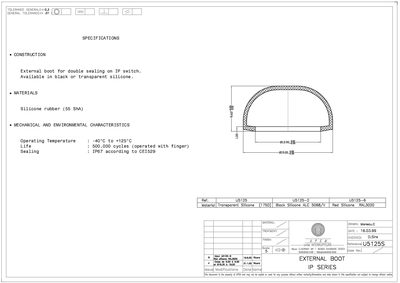

The U5125 external boot provides double sealing for IP switches and is offered in black or transparent silicone. It is designed for use in harsh environments and complies with IP67 sealing standards.
Key details include a temperature range of -40 °C to +125 °C, a service life of 500,000 finger‑actuated cycles, and construction from silicone rubber (55 ShA). Available material colors are transparent silicone (175D), black silicone, and red silicone (RAL3020).
| Construction | External boot for double sealing on IP switch |
|---|---|
| Available colors | black or transparent silicone |
| Material | Silicone rubber (55 ShA) |
| Operating Temperature | -40°C to +125°C |
| Life (cycles) | 500,000 cycles |
| Sealing | IP67 |
| Material colors | Transparent Silicone (175D), Black Silicone, Red Silicone (RAL3020) |
The boot operates from -40 °C up to +125 °C.
It meets an IP67 sealing rating.
It is rated for 500,000 cycles.
The boot is made of silicone rubber (55 ShA).
