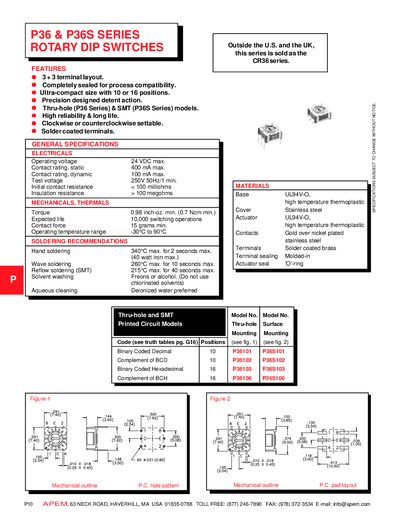

The P36 series rotary DIP switches are an ultra-compact switch with a 3 + 3 terminal layout, completely sealed for process compatibility, with 10 or 16 positions, precision designed detent action, thru-hole (P36 Series) and SMT (P36S Series) models, high reliability and long life, clockwise or counterclockwise settable, solder coated terminals.
The P36 and P36S rotary DIP switches feature a 3+3 terminal layout, sealed construction for process compatibility, and an ultra‑compact size with 10 or 16 selectable positions. Options include thru‑hole (P36) and surface‑mount (P36S) models, with clockwise or counter‑clockwise settable detents and solder‑coated terminals.
Technical specifications include a maximum operating voltage of 24 VDC, static contact rating of 400 mA, dynamic rating of 100 mA, and an insulation resistance greater than 100 MΩ. Mechanical data list a torque of 0.98 in‑oz min, expected life of 10 000 switching operations, and an operating temperature range of –30 °C to 90 °C. The switches are packaged for both through‑hole and SMT assembly, with optional tape‑and‑reel for SMT models.
| Operating voltage | 24 VDC max |
|---|---|
| Contact rating (static) | 400 mA max |
| Contact rating (dynamic) | 100 mA max |
| Test voltage | 250 V 50 Hz for 1 min |
| Initial contact resistance | < 100 mΩ |
| Insulation resistance | > 100 MΩ |
| Torque | 0.98 in‑oz min |
| Expected life | 10 000 switching operations |
| Contact force | 15 g min |
| Operating temperature range | -30 °C to 90 °C |
| Contact material | Gold over nickel plated |
The switches can operate up to 24 VDC.
They are rated for 10 000 switching operations.
The P36 series is thru‑hole, while the P36S series is surface‑mount (SMT).
Static rating is 400 mA max and dynamic rating is 100 mA max.
