APEM A1-A01-A02-A03 series industrial control switches have IP65 protection grade, modular design and electrical life of more than 50,000 cycles.
The A1‑A01‑A02‑A03 series from APEM covers a range of industrial control switches, including pushbutton, illuminated or non‑illuminated, keylock, rotary lever and emergency‑stop types. All devices are offered with rectangular, square or round operators and can be ordered with custom screen engraving or insertable legends.

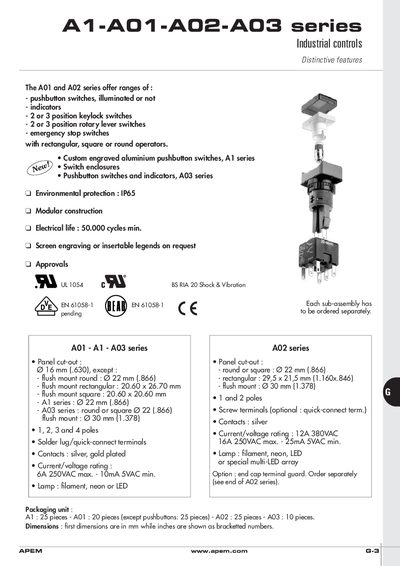

Each switch family is modular; sub‑assemblies such as the operator, switch block, lamp and bezel are ordered separately. The datasheet lists the electrical specifications, mechanical life, IP protection, and available current/voltage ratings, as well as installation tools and accessories for panel mounting.
| Current/voltage rating | 12A 380VAC |
|---|---|
| Electrical life | 50,000 cycles min. |
| IP rating (front) | IP65 |
| IP rating (back) | IP40 |
| Operating temperature | -20°C to +55°C |
| Contact gap | >3 mm |
The switches are rated IP65 on the front of the panel and IP40 on the back.
