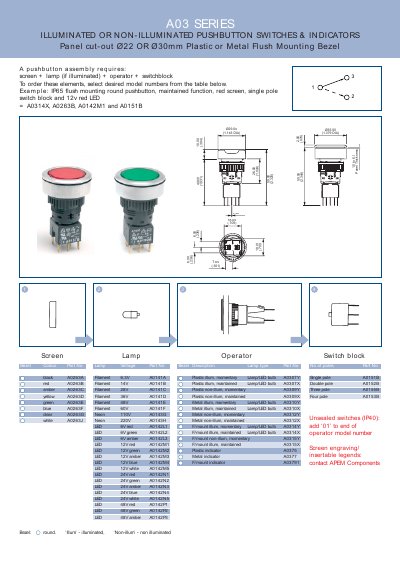

A03 SERIES ILLUMINATED OR NON-ILLUMINATED PUSHBUTTON SWITCHES & INDICATORS
The A03 SERIES from APEM provides illuminated and non‑illuminated pushbutton switches and indicator units. Options include panel cut‑outs of Ø22 mm or Ø30 mm, and both plastic and metal flush‑mounting bezels. The catalogue lists the required components for each assembly – screen, lamp (if illuminated), operator and switch block.
A full range of bezel colours, lamp voltages, lamp types and pole configurations are presented with part numbers, allowing precise ordering of the desired combination. Dimensions and IP ratings (e.g., IP65 flush‑mount) are also specified.
| Panel cut‑out size | Ø22 mm or Ø30 mm |
|---|---|
| Mounting bezel material | Plastic or Metal |
| IP rating (flush‑mount) | IP65 |
| Bezel colour options | Black, Red, Amber, Yellow, Green, Blue, Clear, White |
| Number of poles | Single, Double, Three, Four |
The catalogue offers black, red, amber, yellow, green, blue, clear and white bezels.
Lamp voltages of 6.3 V, 14 V, 28 V, 36 V, 48 V and 60 V are available.
A pushbutton assembly requires a screen, a lamp (if illuminated), an operator and a switch block.
