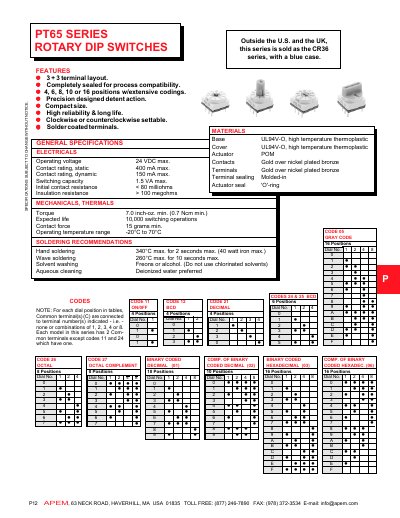

PT65 series rotary DIP switches have 3+3 terminal layout, completely sealed, 4, 6, 8, 10 or 16 positions and extensive coding.
This document provides the general specifications for the PT65 series rotary dip switches, covering electrical ratings such as operating voltage, contact ratings, switching capacity, and insulation resistance. Mechanical and thermal data include torque, expected life, contact force, and operating temperature range.
Additional sections describe soldering recommendations, available coding options, material construction, standard options, and ordering guidance, with model numbers for various actuator styles and terminal configurations.
| Operating voltage | 24 VDC max. |
|---|---|
| Contact rating, static | 400 mA max. |
| Contact rating, dynamic | 150 mA max. |
| Switching capacity | 1.5 VA max. |
| Initial contact resistance | < 80 milliohms |
| Insulation resistance | > 100 megohms |
| Torque | 7.0 inch‑oz. min. (0.7 Ncm min.) |
| Expected life | 10,000 switching operations |
| Contact force | 15 grams min. |
| Operating temperature range | -20°C to 70°C |
| Hand soldering temperature | 340°C max. for 2 seconds |
| Wave soldering temperature | 260°C max. for 10 seconds |
The maximum operating voltage is 24 VDC.
The switches are rated for 10,000 switching operations.
Hand soldering should not exceed 340 °C for more than 2 seconds.
The insulation resistance is greater than 100 megohms.
