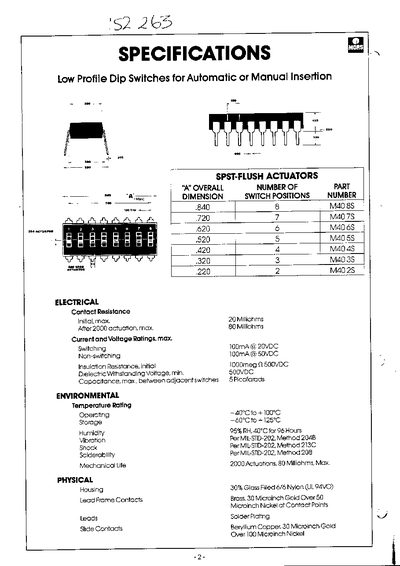

This document provides detailed specifications for APEM low‑profile dip switches designed for automatic or manual insertion. It lists the electrical parameters such as contact resistance, switching current and voltage ratings, as well as insulation and dielectric withstand values.
Environmental limits, mechanical life, and physical construction details are also included, with data on temperature range, humidity tolerance, vibration and shock standards, housing material, and contact plating. A separate section describes surface‑mount dip switch dimensions and model variations.
| Contact Resistance (initial) | 20 MΩ |
|---|---|
| Contact Resistance (after 2000 actuation) | 80 mΩ |
| Switching Current | 100 mA @ 20 VDC |
| Non‑switching Current | 100 mA @ 50 VDC |
| Insulation Resistance (initial) | 1000 MΩ @ 500 VDC |
| Dielectric Withstanding Voltage | ≥ 500 VDC |
| Operating Temperature Range | -40 °C to +100 °C |
| Storage Temperature Range | -60 °C to +125 °C |
| Humidity Rating | 95 % RH at 40 °C for 96 h |
| Mechanical Life | 2000 actuations, up to 80 million cycles |
| Housing Material | 30 % Glass‑filled Nylon (UL 94‑V0) |
The switch can handle up to 100 mA at 20 VDC when switching.
They operate from –40 °C up to +100 °C.
The mechanical life is rated for 2000 actuations, up to 80 million cycles maximum.
The initial insulation resistance is 1000 MΩ at 500 VDC.
