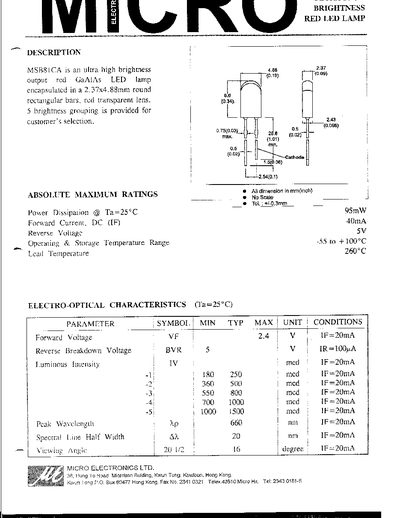

The MSB8ICA is an ultra‑high brightness red GaAlAs LED lamp encapsulated in a 2.37 × 4.88 mm package with a red transparent lens. Five brightness groupings are offered for customer selection.
The datasheet provides absolute maximum ratings, electro‑optical characteristics and typical parameters such as forward voltage, reverse breakdown voltage, luminous intensity, peak wavelength, viewing angle and operating temperature range.
| Forward Voltage (typ) | 2.4 V |
|---|---|
| Reverse Breakdown Voltage (typ) | 3 V |
| Peak Wavelength | 660 nm |
| Spectral Line Half Width (typ) | 20 nm |
| Viewing Angle (typ) | 16° |
| Operating Temperature Range | -55 °C to +100 °C |
The typical forward voltage is 2.4 V at a forward current of 20 mA.
The LED emits light with a peak wavelength of 660 nm at 20 mA.
Five brightness groupings are provided for the customer's selection.
The device operates from –55 °C up to +100 °C.
