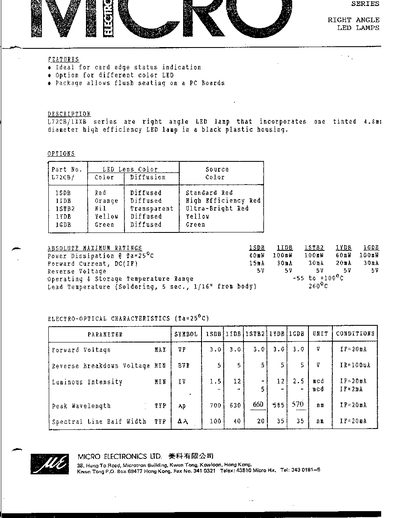

This document is a datasheet for the Micro Electronics L72CB/1XXB series of right-angle LED lamps. These components are designed for card edge status indication and feature a black plastic housing that allows for flush seating on PC boards. The series offers options for different lens colors, including red, orange, yellow, green, and transparent.
| Package Type | Black plastic housing |
|---|---|
| Power Dissipation (ISDB) | 40mW |
| Forward Current (IDB) | 30mA |
| Reverse Voltage | 5V |
| Operating Temperature Range | -55 to +100°C |
The product is ideal for card edge status indication.
The maximum power dissipation rating is 40mW, 100mW, or 66mW depending on the specific option.
The device operates and stores within a temperature range of -55 to +100°C.
