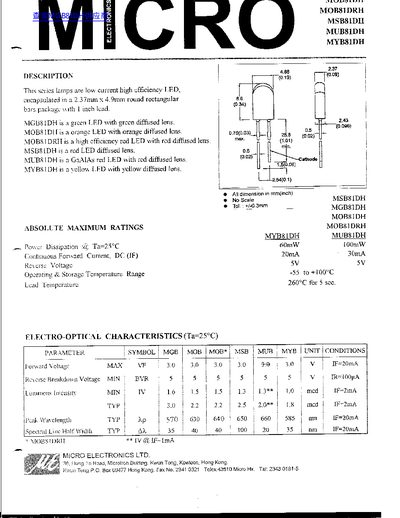

This document describes the MOB81DRH, MSB81DH, MUB81DH, and MYB81DH series of low current, high-efficiency LEDs. These components are encapsulated in a 2.37mm x 4.9mm round rectangular package with inch leads.
| Package Type | 2.37mm x 4.9mm round rectangular package with inch lead |
|---|---|
| Power Dissipation (Ta=25°C) | 60mW |
| Continuous Forward Current (DC IF) | 20mA |
| Operating Temperature Range | -55 to +100°C |
| Peak Wavelength (Red) | 630 nm |
| Forward Voltage MAX (Red) | 3.0 V |
The devices operate and store within a temperature range of -55 to +100°C.
The MOB81DRH has a maximum power dissipation of 60mW at 25°C.
The MSB81DH has a typical forward voltage of 3.0 V at 20mA.
