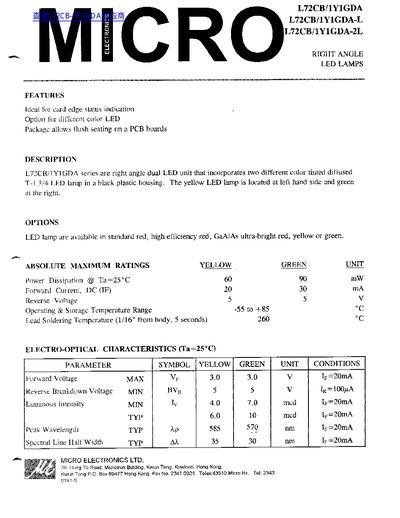

The L72CB/1Y1GDA series are right angle dual LED units with yellow and green LEDs in a black plastic housing. They are designed for flush mounting on PCBs and ideal for card edge status indication. Options include standard red, high efficiency red, GaAlAs ultra-bright red, yellow, or green LEDs. The product features absolute maximum ratings and electro-optical characteristics for reliable operation.
| Power Dissipation @ Ta=25°C | 60 90 mW |
|---|---|
| Forward Current, DC | 20 30 mA |
| Reverse Voltage | 5 5 Vv |
| Operating & Storage Temperature Range | -55 to +85 °C |
| Lead Soldering Temperature | 260 °C |
| Forward Voltage MAX (Yellow) | 3.0 Vv |
| Reverse Breakdown Voltage MIN | 5 Vv |
| Luminous Intensity MIN (Yellow) | 4.0 mcd |
| Peak Wavelength TYP (Yellow) | 585 nm |
| Spectral Line Half Width TYP (Yellow) | 35 nm |
LED lamps are available in standard red, high efficiency red, GaAlAs ultra-bright red, yellow or green.
The operating and storage temperature range is -55 to +85 °C.
The forward voltage maximum for the yellow LED is 3.0 Vv.
The peak wavelength for the yellow LED is 585 nm.
