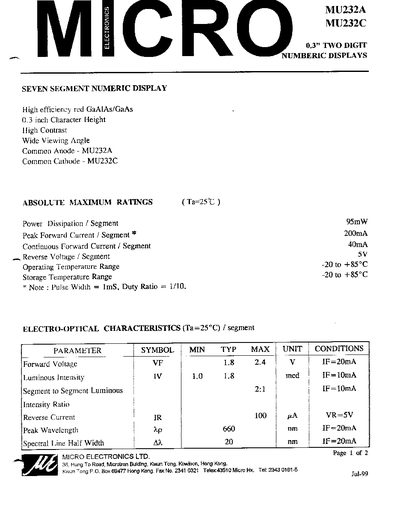

Micro Electronics MU232A/MU232C 0.3" Two Digit Numeric Display Datasheet

Brand: Micro
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 2
File format: PDF
File size: 70 KB
Published: 06 June, 2012
Updated: 06 June, 2012
MD5 checksum: 3487D20C8BE578E8F1A1D3771611178F
PDF: Micro Electronics MU232A/MU232C 0.3" Two Digit Numeric Display Datasheet PDF

About this manual

This document provides technical specifications for the MU232A and MU232C, which are 0.3-inch two-digit seven-segment numeric displays manufactured by Micro Electronics Ltd. The series features high-efficiency red GaAlAs/GaAs technology with a common anode configuration (MU232A) or common cathode configuration (MU232C).

What's inside

ELECTRONICS
ABSOLUTE MAXIMUM RATINGS
ELECTRO-OPTICAL CHARACTERISTICS
MECHANICAL DIMENSIONS

Specifications

Character Height	0.3 inch
Operating Temperature Range	-20 to +85°C
Peak Forward Current / Segment	200mA
Continuous Forward Current / Segment	40mA
Forward Voltage (Typical)	2.4 V

Frequently asked questions

What is the character height of these displays?

The displays have a character height of 0.3 inch.

What are the operating temperature limits for these devices?

The units operate within a temperature range of -20 to +85°C.

What is the peak forward current rating per segment?

The maximum peak forward current allowed per segment is 200mA.
