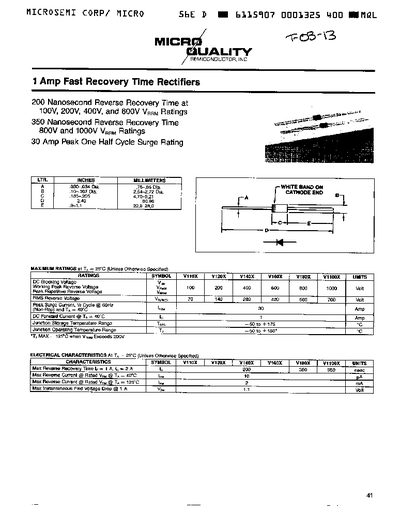

This document is a technical datasheet for Microsemi Corporation's 1 Amp Fast Recovery Time Rectifiers. The device family covers various reverse voltage ratings, including 100V through 600V with a 200 nanosecond reverse recovery time, and 800V to 1000V ratings with a 350 nanosecond reverse recovery time.
| DC Forward Current (Tj = 40°C) | 1 Amp |
|---|---|
| Peak Surge Current | 30 Amp |
| Junction Storage Temperature Range | -50 to +176 °C |
| Max Reverse Recovery Time (Vrrm >= 800V) | 350 ns |
The device has a 30 Amp peak one half cycle surge rating.
The device has a 30 Amp peak one half cycle surge rating.
The junction storage range is -50 to +176 °C, and the operating range is -50 to +150 °C.
The time is 24 nanoseconds at 100V, 350 nanoseconds at 800V and 1000V.
