MX23L1610 is a 2M x 8 (byte mode) and 1M x 16 (word mode) fast read and write memory with a maximum read time of 70ns, current of 25mA and standby current of 15uA. The supply voltage is 3.0V - 3.6V.

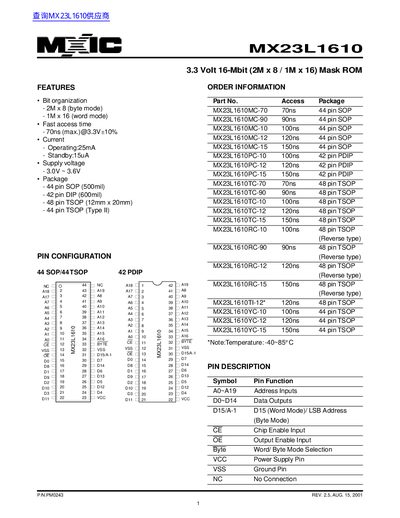

The MX23L1610 is a 16‑Mbit mask ROM available in byte (2M × 8) and word (1M × 16) organizations. It operates from 3.0 V to 3.6 V and offers fast access times as low as 70 ns. The document lists several package types, including 44‑pin SOP, 42‑pin PDIP, 48‑pin TSOP and a 44‑pin TSOP (Type II).
Electrical specifications cover absolute maximum ratings, DC and AC characteristics, and timing diagrams. Key parameters include operating current of 25 mA, standby current of 0.5 mA (TTL) or 15 µA (CMOS), VOH min 2.4 V, VOL max 0.4 V, VIH min 2.2 V, and VIL max ‑0.3 V. The datasheet also provides revision history and contact information for Macronix offices worldwide.
| Memory size | 16 Mbit (2M × 8 / 1M × 16) |
|---|---|
| Supply voltage | 3.0 V ~ 3.6 V |
| Operating current | 25 mA |
| Standby current (TTL) | 0.5 mA |
| Standby current (CMOS) | 15 µA |
| Read Cycle Time (tRC) | 70 ns ~ 150 ns |
| Output High Voltage (VOH) min | 2.4 V |
| Output Low Voltage (VOL) max | 0.4 V |
| Input High Voltage (VIH) min | 2.2 V |
| Input Low Voltage (VIL) max | -0.3 V |
| Package options | 44‑pin SOP (500 mil), 42‑pin PDIP (600 mil), 48‑pin TSOP (12 mm × 20 mm), 44‑pin TSOP (Type II) |
The device operates from 3.0 V to 3.6 V.
The voltage on any pin relative to VSS may range from –0.3 V to 4.3 V.
Available packages include 44‑pin SOP (500 mil), 42‑pin PDIP (600 mil), 48‑pin TSOP (12 mm × 20 mm) and 44‑pin TSOP (Type II).
