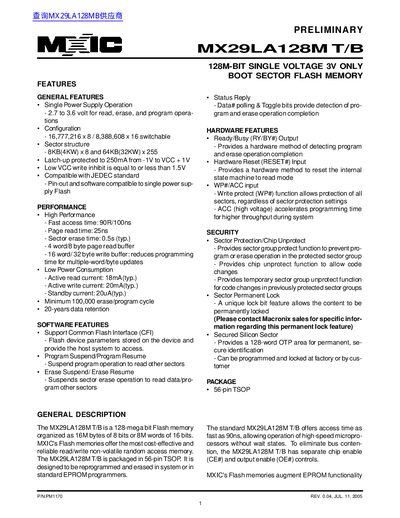

MX29LA128M T/B is a 128M-BIT single voltage 3V flash memory with features like single power supply operation, switchable configuration, multiple sector structure, high performance, low power consumption, and support for CFI interface.
The MX29LA128M T/B is a 128-mega bit Flash memory organized as 16M bytes of 8 bits or 8M words of 16 bits. It features a single power supply operation ranging from 2.7 to 3.6 volts and offers fast access times starting at 90ns.
The device includes advanced hardware features such as Ready/Busy output, hardware reset input, and write protect functions. It supports Common Flash Interface (CFI) and provides automatic programming algorithms for efficient in-system reprogramming.
| Memory Capacity (x8) | 16,777,216 x 8 |
|---|---|
| Memory Capacity (x16) | 8,388,608 x 16 |
| Operating Voltage | 2.7 to 3.6 V |
| Access Time | 90ns |
| Page Read Time | 25ns |
| Sector Erase Time (typ.) | 0.5s |
| Active Read Current (typ.) | 18mA |
| Standby Current (typ.) | 20uA |
| Erase/Program Cycles | 100,000 |
| Data Retention | 20 years |
The device operates with a single power supply of 2.7 to 3.6 volts for read, erase, and program operations.
Yes, it is pin-out and software compatible with single power supply Flash devices according to the JEDEC standard.
The device is latch-up protected up to 250mA from -1V to VCC + 1V.
