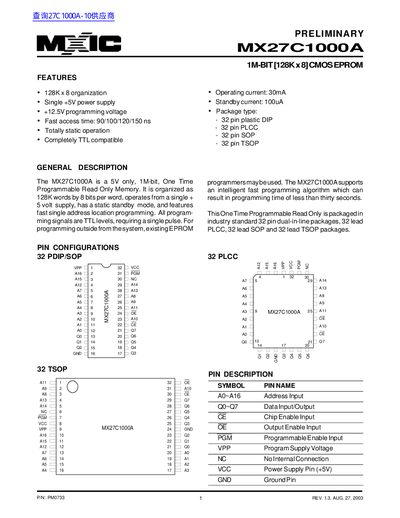

The MX27C1000A is a 5V-only, 1M-bit, One Time Programmable Read Only Memory. It is organized as 128K words by 8 bits per word, operates from a single +5 volt supply, has a static standby mode, and features fast single address location programming.
The MXIC MX27C1000A is a One Time Programmable (OTP) CMOS EPROM organized as 128K words by 8 bits. It operates from a single +5V power supply and features fast access times ranging from 90 to 150 ns depending on the specific grade.
The device supports various industry-standard packages including 32-pin PDIP, PLCC, SOP, and TSOP. Key electrical characteristics include an operating current of 30 mA in active mode and a standby current as low as 100 uA. Programming requires a single +5V supply with a separate +12.5V programming voltage.
| Organization | 128K x 8 |
|---|---|
| Operating Voltage | +5V |
| Programming Voltage | +12.5V |
| Operating Current | 30mA |
| Standby Current | 100uA |
| Access Time (Min) | 90 ns |
| Ambient Operating Temperature | -40°C to 85°C |
Programming requires a +12.5V programming voltage applied to the VPP pin.
The operating current is 30mA when the Chip Enable input is low.
